EnglishStructural Type Cases

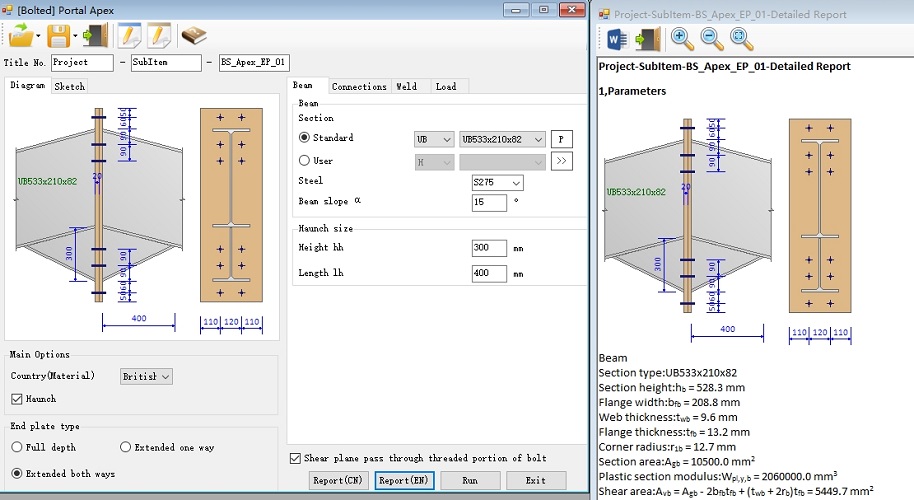

1. Portal Frame Factory Building Design
Node design is crucial for portal frame factory buildings as it determines the stability of the overall structure. With its extensive node library, the YLP2020 software meets the calculation requirements for various node types, ensuring reliable connections between components.
Node design is crucial for portal frame factory buildings as it determines the stability of the overall structure. With its extensive node library, the YLP2020 software meets the calculation requirements for various node types, ensuring reliable connections between components.

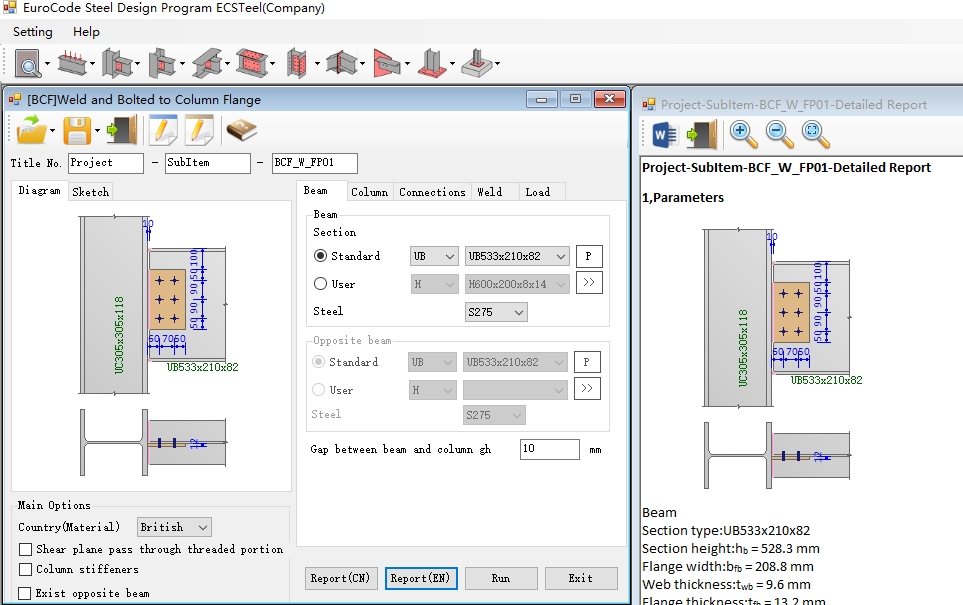

2. Steel Frame and Steel Truss Structure Design

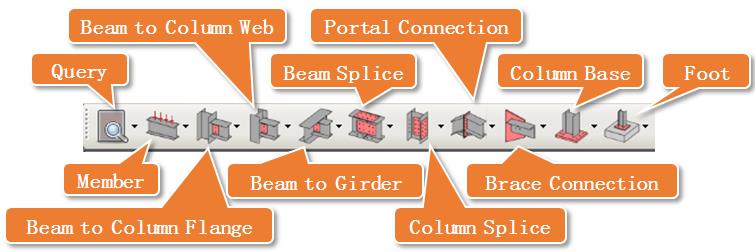

The software applies to all types of connection nodes, including rigid beam-column connections, hinged beam-column connections, steel column splices, steel beam splices, column base nodes, etc.
The software applies to all types of connection nodes, including rigid beam-column connections, hinged beam-column connections, steel column splices, steel beam splices, column base nodes, etc.

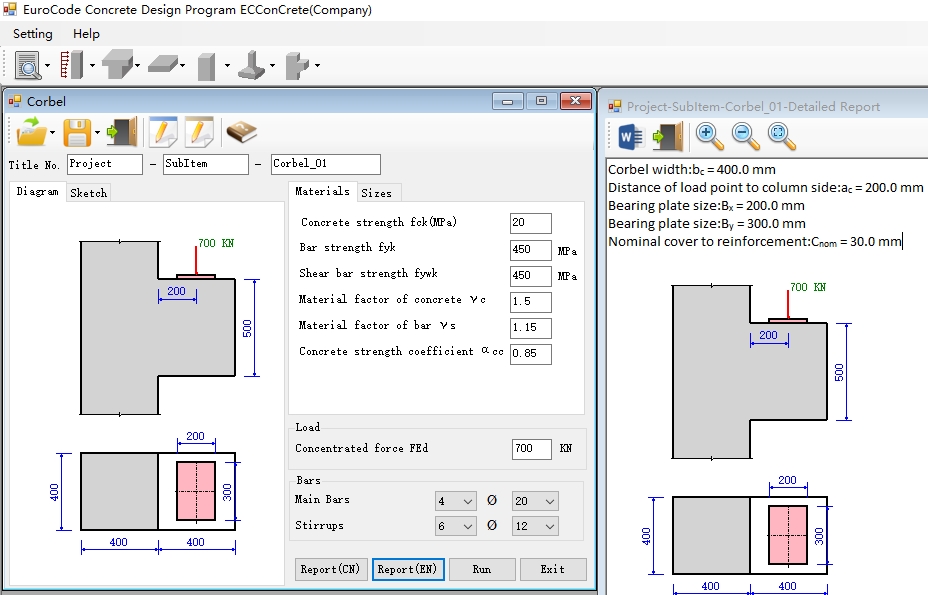

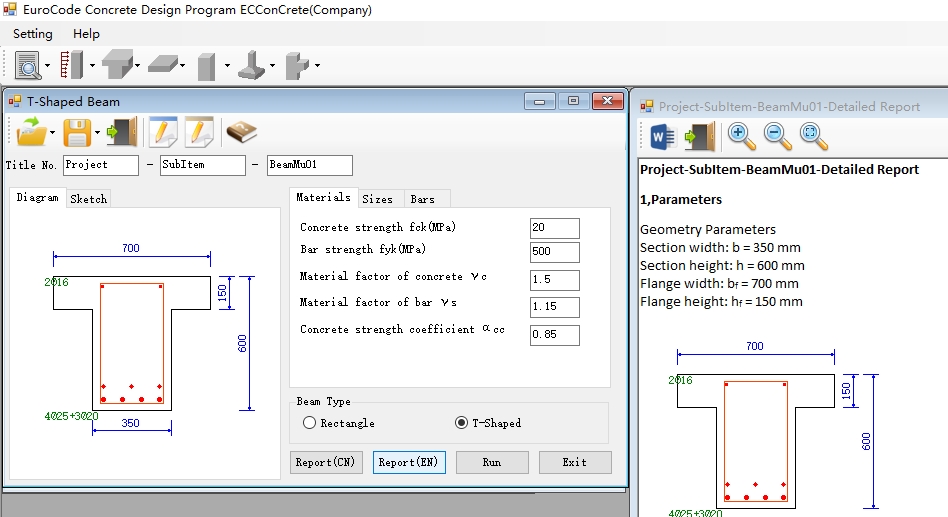

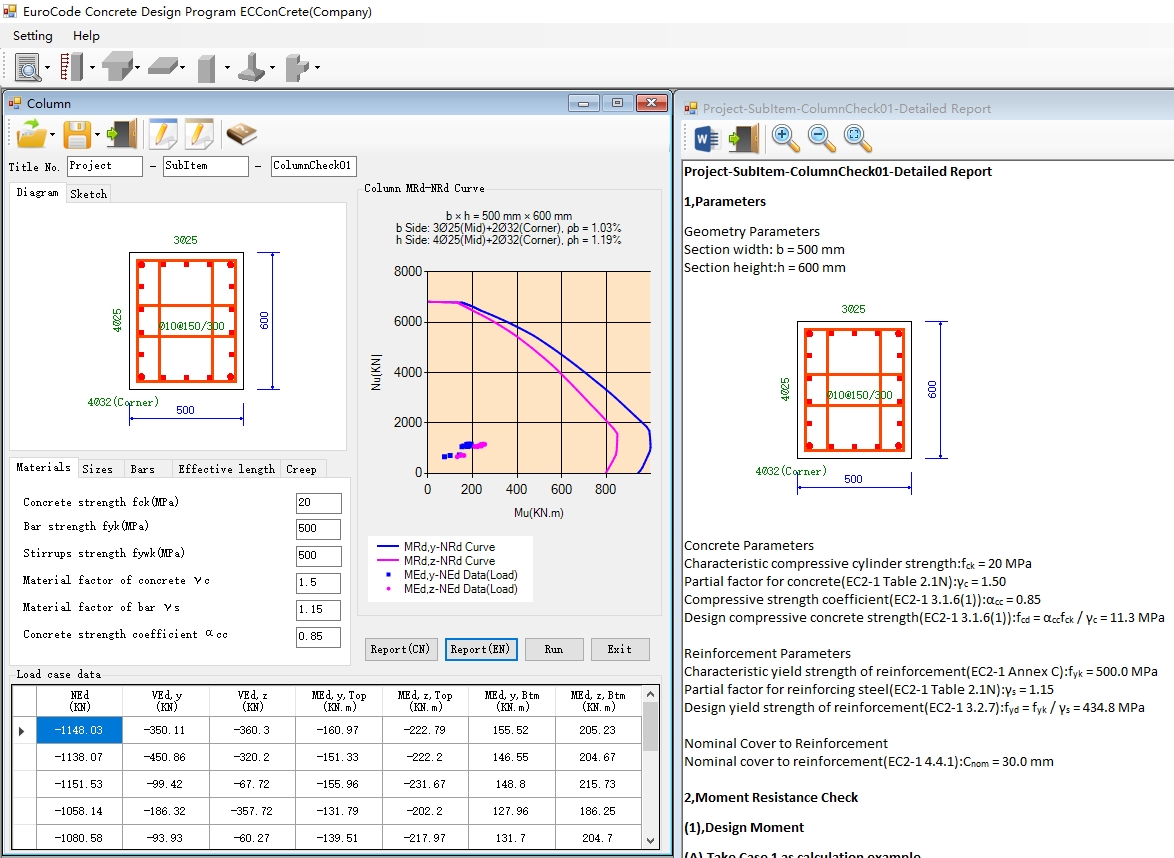

3. Concrete Beam, Slab, and Column Design
Based on analysis results, the software reasonably determines the cross-sectional dimensions and reinforcement of beams, slabs, and columns to ensure the structure meets load-bearing capacity and stiffness requirements.
Based on analysis results, the software reasonably determines the cross-sectional dimensions and reinforcement of beams, slabs, and columns to ensure the structure meets load-bearing capacity and stiffness requirements.
4. Foundation, Silo, and Retaining Wall Design
-

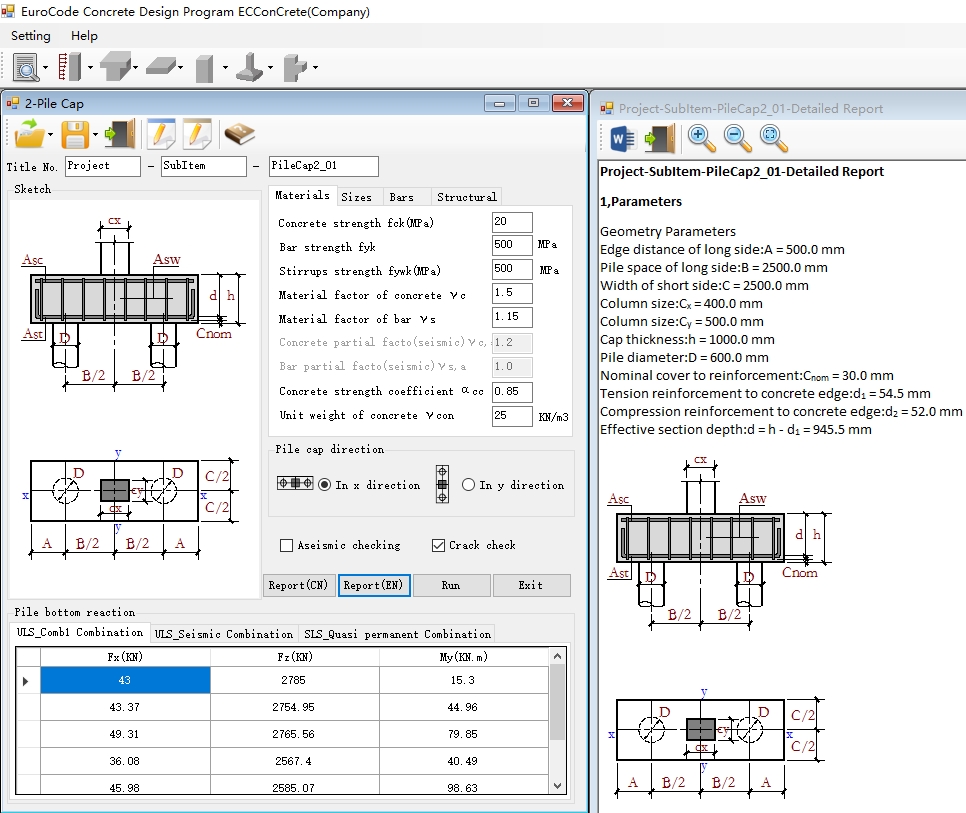

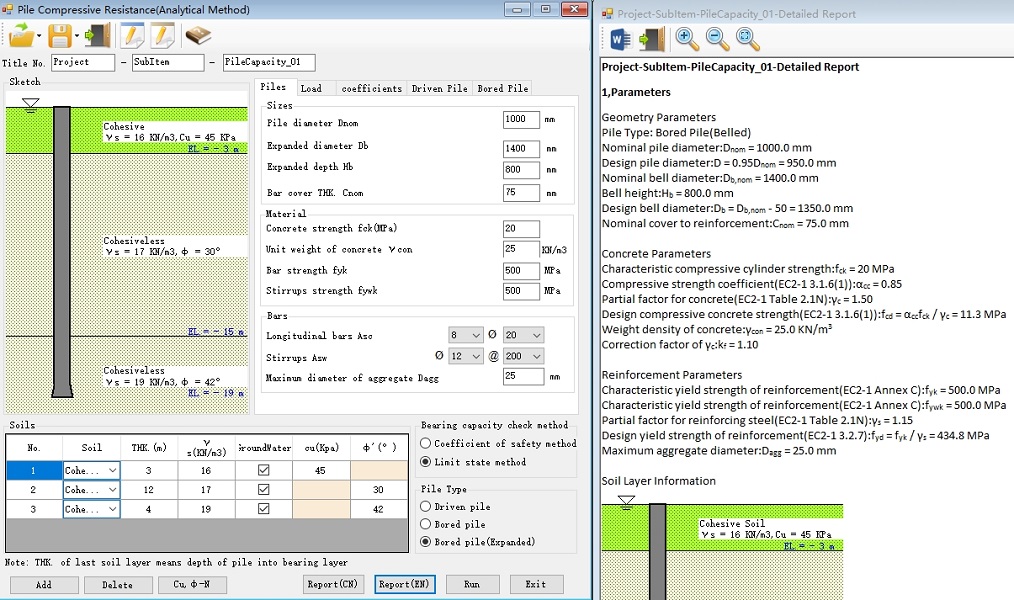

Foundation Design: The software analyzes multiple foundation types (e.g., isolated footings, raft foundations, pile foundations) by integrating geotechnical survey data with superstructure loads. It precisely calculates foundation dimensions, reinforcement, and embedment depth.
-

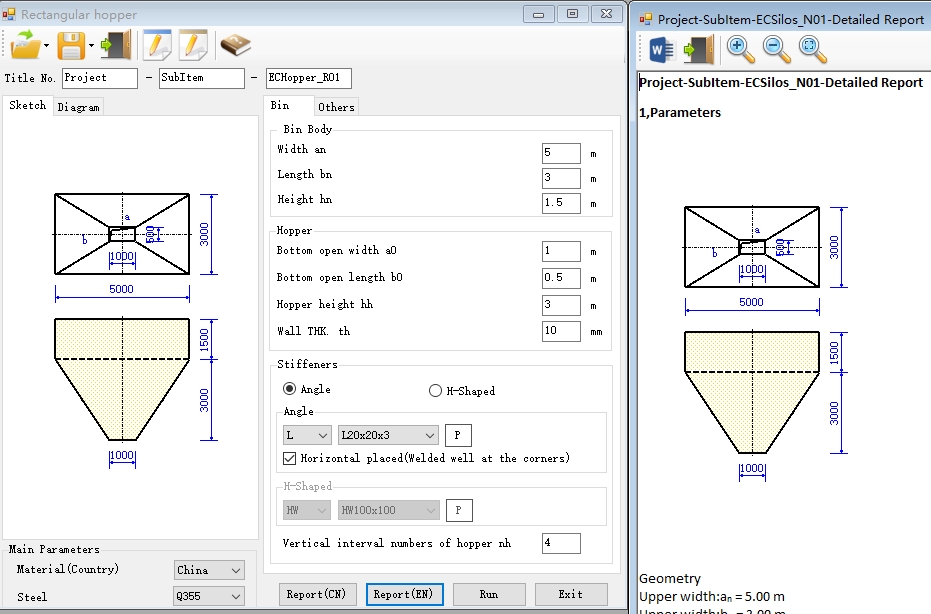

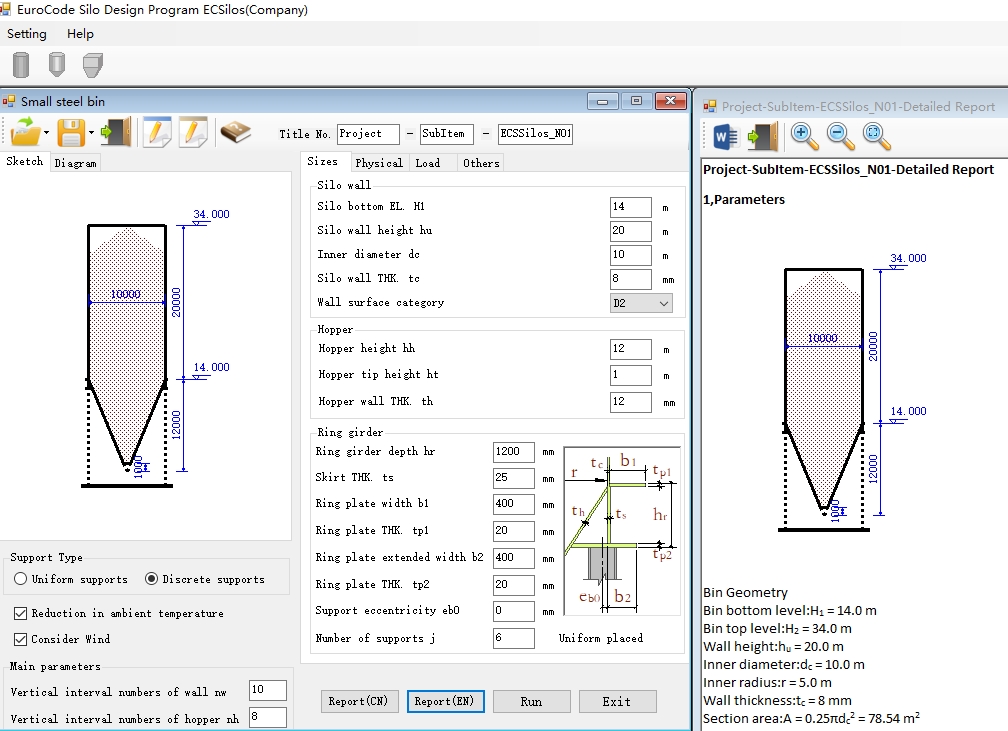

Silo Design: Tailored to the unique structure and loading characteristics of silos, the software uses specialized algorithms to analyze internal forces and calculate reinforcement for silo walls and bases. Considering stored materials, wind loads, seismic effects, etc., it provides reliable design parameters under various conditions. Additionally, it offers design templates for multiple silo types to streamline the design process.
-
Retaining Wall Design: The YLP2020 software comprehensively assesses retaining wall stability (e.g., anti-sliding, anti-overturning) based on wall height, soil properties, and surface loads. Through calculations, it determines wall thickness, reinforcement, and foundation dimensions to ensure safe operation under complex geological and external forces.
